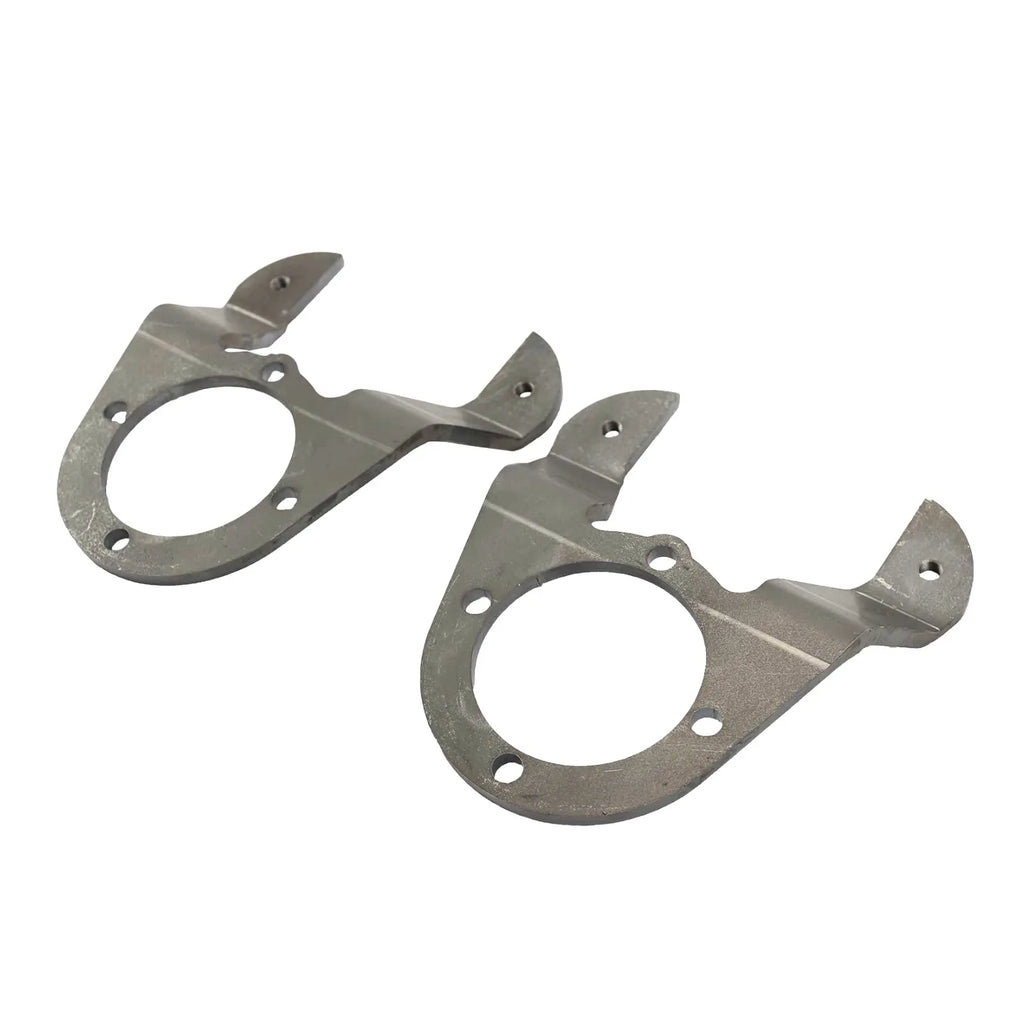

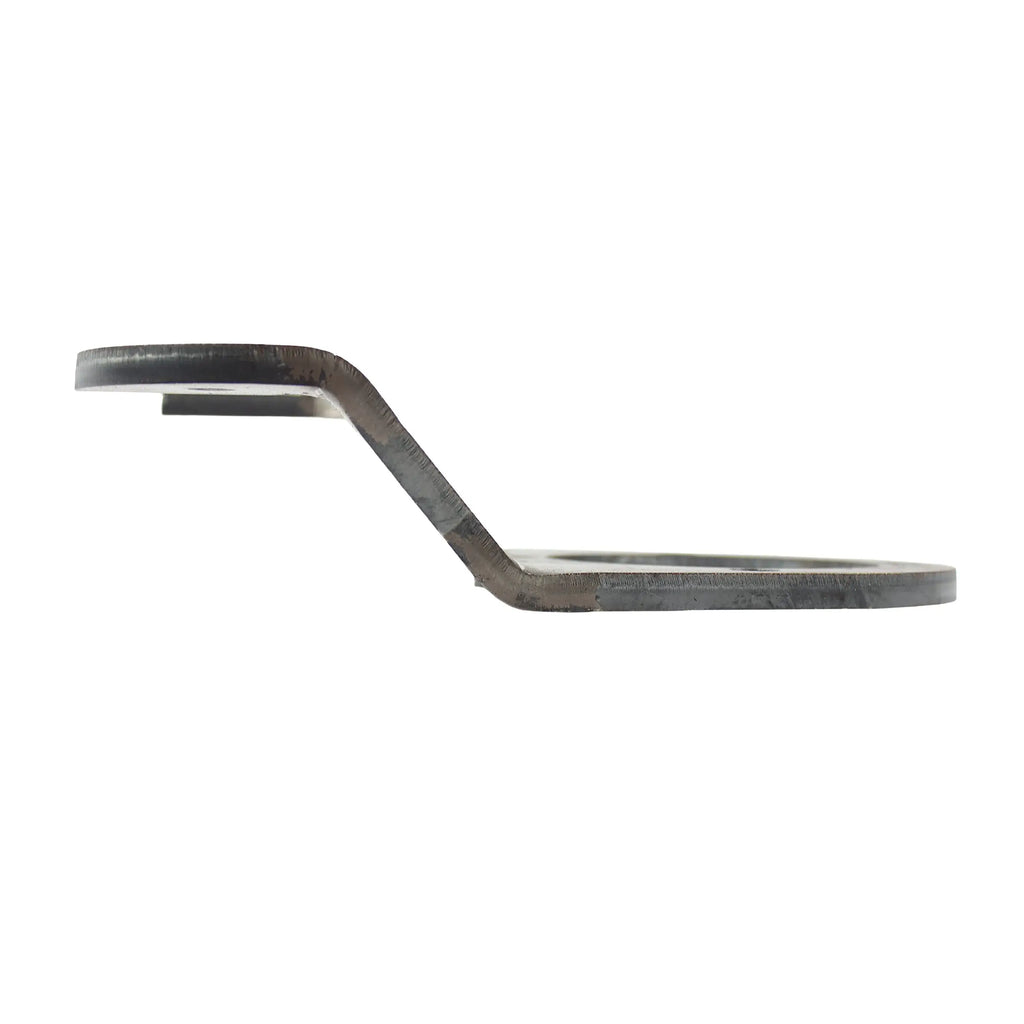

Dana 70 Disc Brake Bracket Pair (Chevy Dually axle using single rear wheel)

Dana 70 Disc Brake Bracket Pair (Chevy Dually axle using single rear wheel)

Single Wheel Disc Bracket for Chevy Dually D70

This bracket set is made for converting a Chevy Dana 70 dually axle to single rear wheel use. It fits narrow-width axle builds using standard steel wheels and eliminates the bulky drum brakes in favor of a lighter disc setup.

The brackets are designed to work specifically with 1973–1987 Chevy 3/4-ton front rotors and calipers. The rotor must be opened up about 3/16" to clear the hub from the backside. These are not universal—Chevy dually axle only.

Key Features

• Part Number: R1022
• Fits Chevy Dana 70 DRW axles using single rear wheels
• Will not work with dually wheels
• Compatible with 1973–1987 Chevy 3/4 Ton front rotors and calipers
• Sold as a pair

Important Notes

• Double check stud diameter — studs should drop freely into the rotor
• Do not press studs into the rotor — drilling may be required
• Ensure minimum 5/8" lug nut thread engagement once the wheel is installed

Recommended Components

• Calipers: LH - N4674 or N4597, RH - N4673 or N4596
